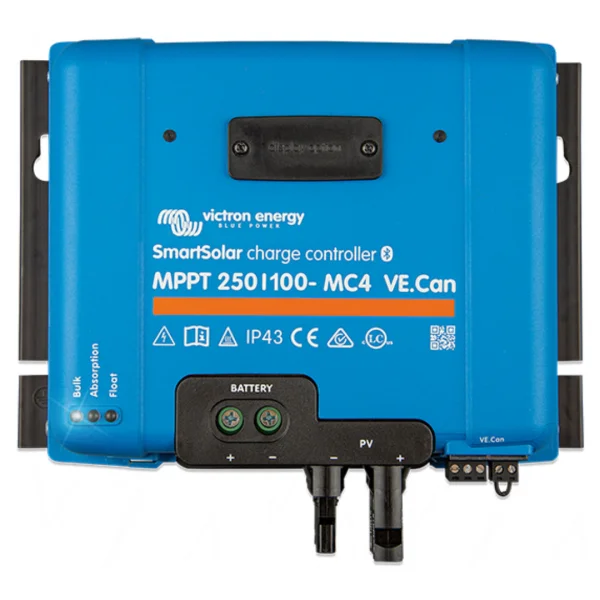

Victron Energy SmartSolar MPPT 250/100A-MC4 VE.Can
$2,005.45
In Stock
Victron Energy SmartSolar MPPT 250/100A-MC4 VE.Can offers a comprehensive range of MPPT solar controllers tailored to suit various system configurations. Our SmartSolar MPPT controllers provide exceptional performance and offer unparalleled convenience through remote monitoring and control using the user-friendly VictronConnect app. In addition, with our adaptive battery management feature, you can extend the lifespan of your batteries, ensuring long-term reliability for your solar power system.
Victron understands that every solar system has unique requirements. So whether you have a small-scale 12V or 24V system or you require higher power capacities for 36V or 48V systems, Victron has the perfect MPPT controller for you.
The 75/10 and 75/15 MPPT controllers are ideal for 12V and 24V systems utilizing either low-cost “house panels” or smaller “12V panels.” These controllers can handle up to 3 “12-volt” style panels connected in series, providing efficient power conversion for your setup.
For higher power requirements, the 100V and 150V models are designed to accommodate 12V, 24V, 36V, and 48V systems.
Specifications:
Brand: Victron Energy
Model: SmartSolar MPPT 250/70-MC4 VE. Can
Battery voltage: 12/24/36/48V
Charge current: 70A
Nominal PV power:
– 12V: 1000W
– 24V: 2000W
– 36V: 3000W
– 48V: 4000W
IP rating IP43
PV open circuit voltage: 250V
In stock
Categories:
Solar ControllersSKU:
SCC125110512Victron Energy SmartSolar MPPT 250/100A-MC4 VE.Can
Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast Victron Energy SmartSolar MPPT 250/100A-MC4 VE.Can will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points (MPP) may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP.
The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%.
Flexible charge algorithm
Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).
Extensive electronic protection
Over-temperature protection and power derating when temperature is high.
PV short circuit and PV reverse polarity protection.
PV reverse current protection.
Bluetooth Smart built-in
The wireless solution to set-up, monitor, update and synchronize SmartSolar Charge Controllers.
Internal temperature sensor and optional external battery voltage and temperature sensing via Bluetooth
A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.
VE.Can: the multiple controller solution
Up to 25 units can be synchronized with VE.Can
VE.Direct or VE.Can
For a wired data connection to a Color Control GX, other GX products, PC or other devices
Remote on-off
To connect for example to a VE.BUS BMS.
Programmable relay
Can be programmed to trip on an alarm, or other events.
Optional: LCD display
| Weight | 4.5 kg |
|---|---|
| Dimensions | 10.3 × 29.5 × 24.6 cm |
| Categories | Solar Charge Controllers/Regulators |
| Description | 12V/24V/36V/48V 100A CAN-bus Smart Solar Charge Controller MPPT Type SCC125110512 |
| Application | Automotive/Marine/RV, Auxilliary Battery Banks, Off-Grid & Self Consumption Solar, UPS |
| Voltage | 12/24/36/48V |
| Size | 100A |
| Length | 10.3 |
| Width | 29.5 |
| Height | 24.6 |
