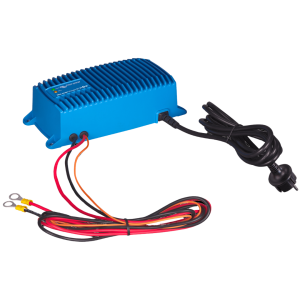

Victron Energy IP67 12/25 Bluesmart Charger

Bluetooth setup and monitoring (Using VictronConnect)

This Victron Energy chargers are easily setup, monitor or update the charger firmware using the VictronConnect app and a Bluetooth enabled device (such as a mobile phone or tablet).

Multi-stage charge algorithm

The multi-stage charge algorithm of the Victron Energy IP67 charger is specifically engineered to optimize each recharge cycle and charge maintenance over extended periods.

Adaptive absorption

Adaptive absorption monitors the battery’s response during initial charging and intelligently determines the appropriate absorption duration for each individual charge cycle.   This ensures that the battery is fully recharged regardless of the discharge level or capacity and avoids excessive time at the elevated absorption voltage (that can accelerate battery aging).

Temperature compensation

Charge voltage is automatically compensated depending on the ambient temperate; this ensures that the battery is charged at the optimal charge voltage regardless of the climate and avoids the need for manual settings adjustments.

Temperature compensation is not required and automatically disabled when in LI-ION charge mode.

High efficiency

The Victron Energy IP67  blue smart charger range is up to ~95% efficient; resulting in lower power usage, less heat generated and cooler operation.

Silent operation

Charger operation is totally silent: there is no cooling fan or moving parts.

Lithium Ion compatible

Compatible with Li-ion (LiFePO₄) batteries; when the integrated LI-ION charge mode is selected the charge cycle settings are altered to suit. If the charger is connected to a battery where under voltage protection (UVP) has tripped, the blue smart charger range will automatically reset UVP and start charging; many other chargers will not recognize a battery in this state.

Warning: Never charge a Li-ion battery when its temperature is below 0°C.

Storage stage

An additional stage to extend battery life whilst the battery is unused and on continuous charge.

Recondition stage

An optional stage that can partially recover/reverse lead acid battery degradation due to sulfation; typically caused by inadequate charging or if the battery is left in a deeply discharged state.

Low current mode

An optional mode that limits the maximum charge current to a significantly reduced level; recommended when charging lower capacity batteries with a high current charger.

Recovery function

The Victron Energy blue smart charger range will attempt to recharge a severely discharged battery (even down to 0V) with low current and then resume normal charging once the battery voltage has risen sufficiently – many other chargers will not recognize a battery in this state.

Power supply mode

A specific mode to use the charger as a DC power supply; to power equipment at a constant voltage with or without a battery connected.



Weight	2.4 kg
Dimensions	21.9 × 6.5 × 9.9 cm
CHEMISTRY	Lithium Iron Phosphate / Lead Acid (LiFePO4/SLA)
CATEGORIES	Battery Chargers / Analysers / Testers Lead Acid Battery Chargers 12V Battery Chargers Lithium Iron Phosphate Chargers Multi Chemistry Chargers SLA/GEL Type Chargers LiFePO4 Type Chargers Power Supplies AC-DC Power Supplies Blue Smart Range Blue Smart IP67 Range
AH(20HR)	5Ah
VOLTAGE	12V
SIZE	25A
WIDTH	65mm
HEIGHT	99mm
LENGTH/BREADTH/DEPTH	219mm
WEIGHT	2400g
