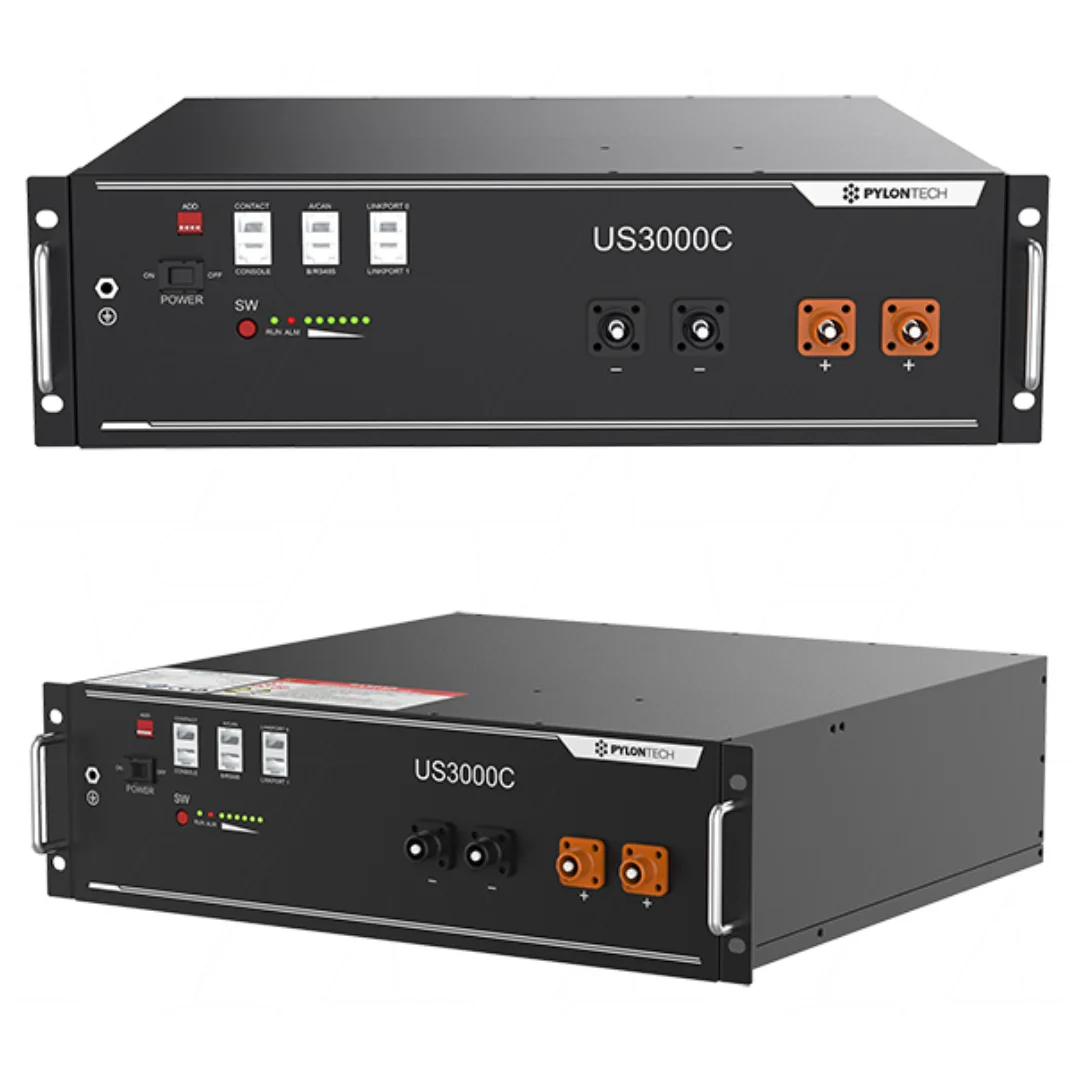

Pylontech US3000C LiFePO4
$2,302.95 Original price was: $2,302.95.$2,072.65Current price is: $2,072.65.
In Stock
Pylontech US3000C LiFePO4, is built with the most advanced technology in LifePo4 Lithium cells, making it the best performing chemistry in the market. Upgrade your off-grid solar system or grid-connected setup with our cost-effective energy storage solution. The Pylontech batteries are fully compatible with a wide range of popular inverter brands.
Features
- Advanced BMS monitors and protects from over-charge/discharge, excess current and high/low temperatures while managing the allow to charge/discharge state, balance, and voltage of each individual cell.
- CAN bus protocol for closed-loop communication.
- Seamless integration with Victron GX devices.
- Integrated soft-start function Long life span, offering up to 8,000 cycles at 95%depth of discharge.
- Stack up to 16 units in parallel.
- Using a Low Voltage Hub, connect up to 96 batteries for 336kWh.
In stock
Pylontech US3000C LiFePO4
Each Battery comes with a 180MM long interlinking Kit to connect batteries in Parallel.
Pylontech US3000C 48V 74Ah Rack Mounted LiFePO4 Battery Module is the latest version HESS battery system designed by Pylontech. It’s long life characteristics, highest energy and power density in the industry, fashionable design, easiness of installation and expansion, all reflect the real requirements of end users and the strong technical capability of Pylontech.
Pylontech ensure the highest quality by designing & manufacturing their own Lithium Phosphate (LiFePO4) batteries and BMS boards.
Features:
- Cycle life: >6000 cycles @ 25°C with 95% DoD for daily cyclic applications
- Usable capcity of 3.37kWh @ 48 VDC
- Working Temperature Range -10°C to 50°C, (Charging 0~50°C: Discharging -10~50°C)
- Compact and fashionable 19″ rack design to suit bracket, rack or cabinet installations
- Modular design gives the you the power to design systems from 3.5kWh to a commercial sized 1.704MWh
- Compatible with many available Hybrid inverters
- Backwards Compatible with existing US series products
- Pre-charge function to pretect ESS from surge currents
- Safety Cert. CE,TüV, UL, RoHS, UN38.3, IEC62619, IEC62040, IEC62477, IEC61000-6-2,IEC61000-3
- Communication Protocols: CAN, RS485, RS232
- 15+ Year Design Life
- Clean Energy Council Approved (CEC)*Please note: the UP/US Cable Kit is required for connection to the Inverter/Charger
System Integration:
The Pylontech US3000C battery can be integrated with many of the worlds leading inverter brands.
Depending on the Inverter brand a Victron Type A or B VE.Can to CAN-Bus Cable maybe require.
The US3000C requires a VE.Can to CAN-bus BMS Type A Cable 1.8m (64900-569) to communicate with Victron Venus Devices.
| Weight | 32 kg |
|---|---|
| Dimensions | 42 × 44.2 × 13.2 cm |
| Description | 48V 74Ah 3552Wh rack mounted battery module LiFePO4 15S2P |
| Application | Home Power Storage, Telecommunications, Off Grid power, Industrial Power, Remote Infrastrucure Power |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Voltage | 48V |
| Nominal Capacity | 74Ah |
| Watt Hour | 3552.0Wh |
| Maximum Continuous Discharge Current | 74A |
| Size | 3RU |
| Length | 42 |
| Width | 44.2 |
| Height | 13.2 |
| Weight | 32 |
