Pylontech US2000 LiFePO4

10% Off

$1,828.45 Original price was: $1,828.45.$1,645.60Current price is: $1,645.60.

In Stock

Pylontech US2000 LiFePO4 is the latest generation lithium battery module. The simplicity in modulating the battery makes it possible to create storage systems of small or large capacities. The initial installation can be expanded, depending on the change in energy requirements, by adding additional modules to the system.

In stock

Categories:

Lithium Batteries

Tags:

Lithium Batteries Pylontech Lithium Batteries

SKU:

US2000

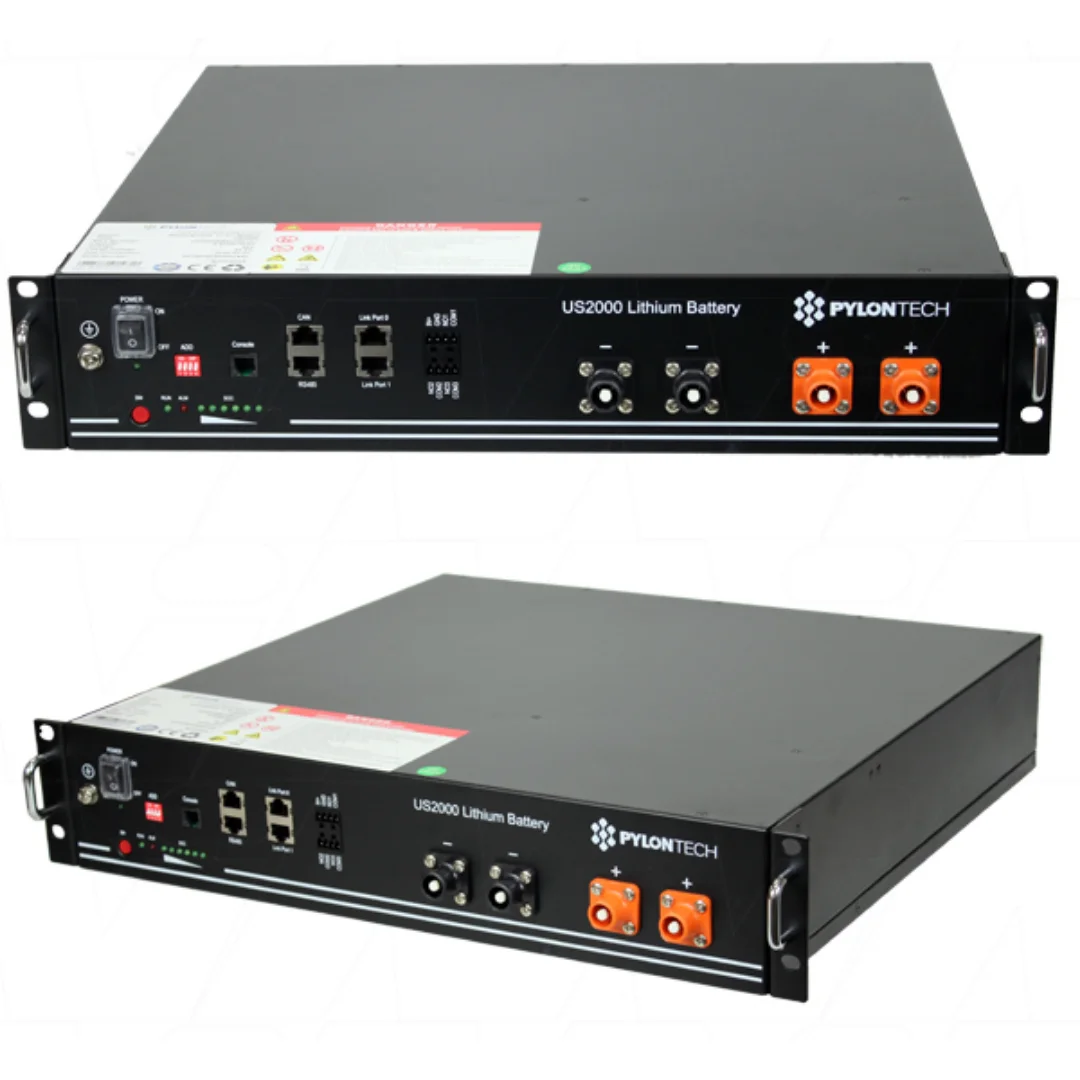

Pylontech US2000 LiFePO4

Pylontech US2000 PLUS 48V 50Ah Rack Mounted LiFePO4 Battery Module – Latest generation

Each Battery comes with a 180MM long interlinking Kit to connect batteries in Parallel.

US2000 series is an ideal solution for residential storage applications, with standard 48V/50AH specification, up to 90% usable capacity and 6,000 cycle-life warranty.

Features:

Cycle life: >6000 cycles @ 25°C with 90% DoD for daily cyclic applications
Usable capcity of 2.16kWh @ 48 VDC
Working Temperature Range -10°C to 50°C, (Charging 0~50°C: Discharging -10~50°C)
Compact and fashionable 19″ rack design to suit bracket, rack or cabinet installations
Modular design gives the you the power to design systems from 2.4kWh to a commercial sized 480kWh
Compatible with many available Hybrid inverters
Safety Cert.TüV, CE, R0HS, UN38, IEC62619, IEC62040, IEC61000-6-2, IEC61000-3
Communication Protocols: CAN, RS485, RS232
15+ Year Design Life
Clean Energy Council Approved (CEC)

Weight	24 kg
Dimensions	41 × 44.2 × 8.9 cm
Description	48V 50Ah 2400Wh rack mounted battery module LiFePO4 15S2P
Application	Home Power Storage, Telecommunications, Off Grid power, Industrial Power, Remote Infrastructure Power
Chemistry	Lithium Iron Phosphate (LiFePO4)
Voltage	48V
Nominal Capacity	50Ah
Watt Hour	2400.0Wh
Maximum Continuous Discharge Current	50A
Size	2RU
Length	41
Width	44.2
Height	8.9
Weight	24
