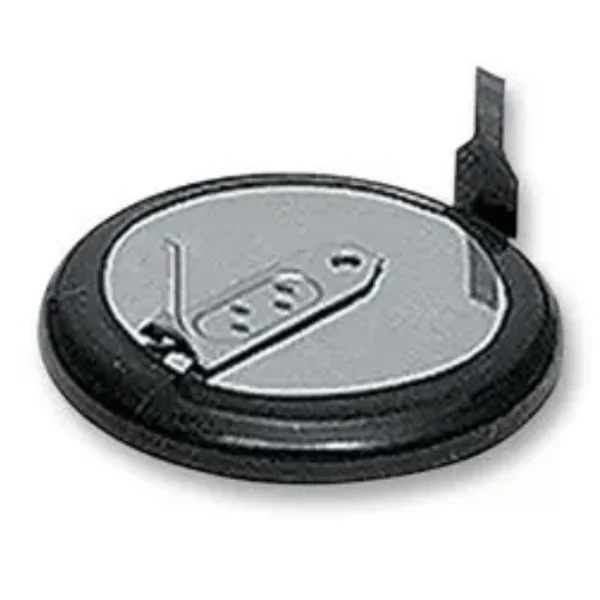

Panasonic VL2020/HFN Lithium Battery
$19.00
In Stock
The VL-2020 series from Panasonic is a vanadium pentoxide lithium coin battery with PCB pin terminals. Horizontal body placement Nominal voltage is 3V Nominal capacity of battery is 20mAh Weight of battery is 2.2g Operating temperature of -20°C to 60°C Standard dimension of 20mm(diameter) x 2mm(height) Applications Power Management, Portable Devices, Consumer Electronics, Industrial
In stock
Categories:
Coin CellsSKU:
VL2020/HFNThe VL-2020 series from Panasonic is a vanadium pentoxide lithium coin battery with PCB pin terminals.
- Horizontal body placement
- Nominal voltage is 3V
- Nominal capacity of battery is 20mAh
- Weight of battery is 2.2g
- Operating temperature of -20°C to 60°C
- Standard dimension of 20mm(diameter) x 2mm(height)
Applications
Power Management, Portable Devices, Consumer Electronics, Industrial
Battery Voltage | 3V |
---|---|
Battery Technology | Lithium Vanadium Pentoxide |
Battery Capacity | 20mAh |
Battery Terminals | PCB Pins |
Battery Size Code | 2020 |
External Diameter | 20mm |
External Height | 2.7mm |
External Width | 20mm |
Weight | 2.2g |
External Depth | 2.7mm |
