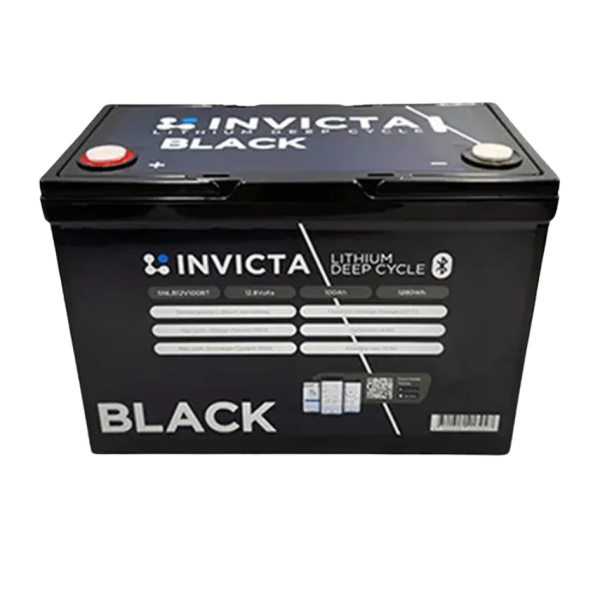

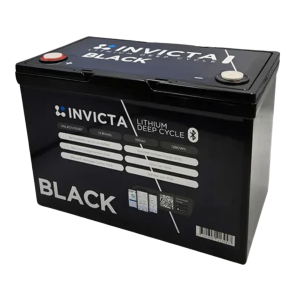

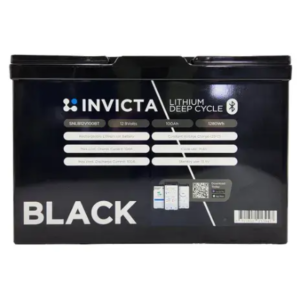

Invicta Black 12.8V 100Ah Lithium Battery SNLB12V100BT

About Invicta Lithium

The Invicta Black 12.8V 100Ah Lithium Battery SNLB12V100BT range has been specifically designed for replacement of similar size Lead acid batteries. The family is comprised of the popular sizes found in the lead acid range but with the added benefits of Lithium Iron Phosphate (LiFePO4) technology and is ideally suited to deep cycle longer run time applications.

Features & Benefits Invicta Black 12.8V 100Ah Lithium Battery SNLB12V100BT

  • Large number of cycles >3000 (100% DoD)
    Up to 8 times cycle life of SLA lowering your total cost of ownership
  • Safe and stable chemistry & Integrated BMS
    The use of LiFePO4 along with the integrated BMS ensures protection against over charge / discharge, temperature and short circuit providing the highest degree of safety
  • Greater capacity utilisation – 60% more than SLA
    Gives longer runtime than equivalent SLA
  • High energy density (less than half of the weight of SLA)
    Lowering total weight of application
  • Fast recharge
    Battery is charged and ready to be used sooner
  • Flat Discharge Curve
    Longer run time & more efficient use of capacity
  • Extremely low self-discharge rate
    Can sit unused for longer periods of time
  • IEC 62619 Certified (Cell)

Features and Benefits

  • Budget Price
  • Invicta Quality & Confidence
  • Engineered To Our Specifications
  • Bluetooth Monitoring
  • IEC 62619 (cell) Certification

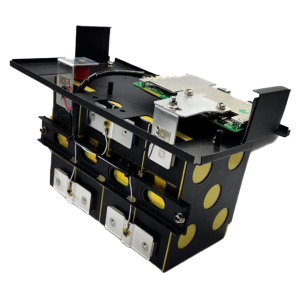

  • Robust Internal Design
  • 5-Year Warranty
  • IP65 Rating
  • Available in 12V100Ah and 12V200Ah

Invicta Black 12.8V 100Ah Lithium Battery SNLB12V100BT





Weight 10.5 kg
Dimensions 30.8 × 17.1 × 21.3 cm
Specification

Nominal Voltage

12.8v

Nominal Capacity (250C, 0.33C)

100Ah

Terminal

M8

Length (mm)

306 ± 2mm

Width (mm)

169 ± 2mm

Height (mm)

211 ± 2mm

Max Charge Voltage

14.6 ± 0.1V

Standby

13.8 ± 0.1V

Cut off Voltage

11V

Max. Discharge Current

100A

Max. Pulse Discharge Current (3 Sec)

300A

Max. Charge Current

100A

Cycle Life (100% DoD)

> 3000

Operating Temp - Charge

0 – 500C

Operating Temp - Discharge

-20 – 550C

Short Circuit Release

Load Release

Max. Series / Parallel Configuration

4S/4P

Dust & Water Resistance (IP)

IP65

Bluetooth Connectivity

Yes

IEC Certification No.

62619
