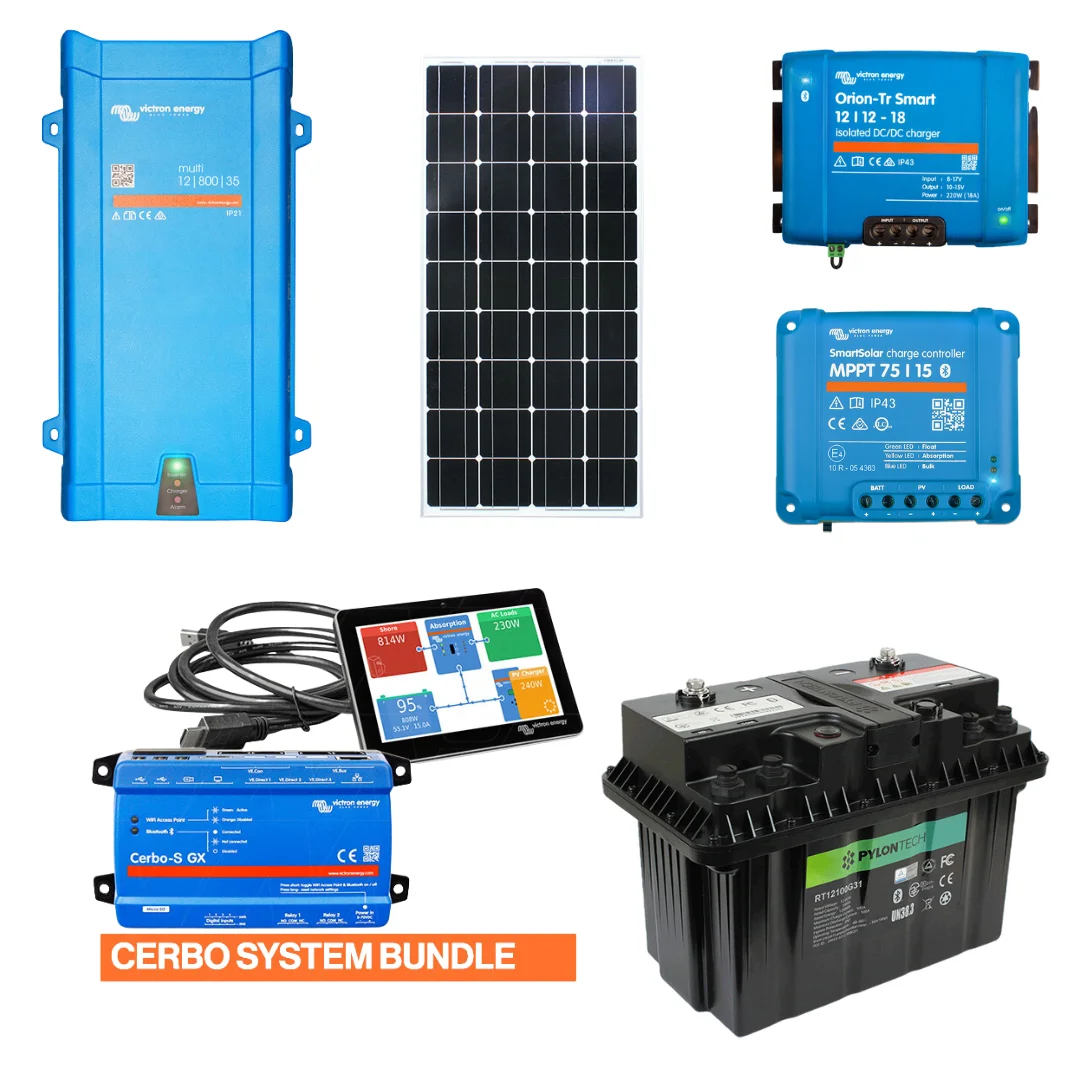

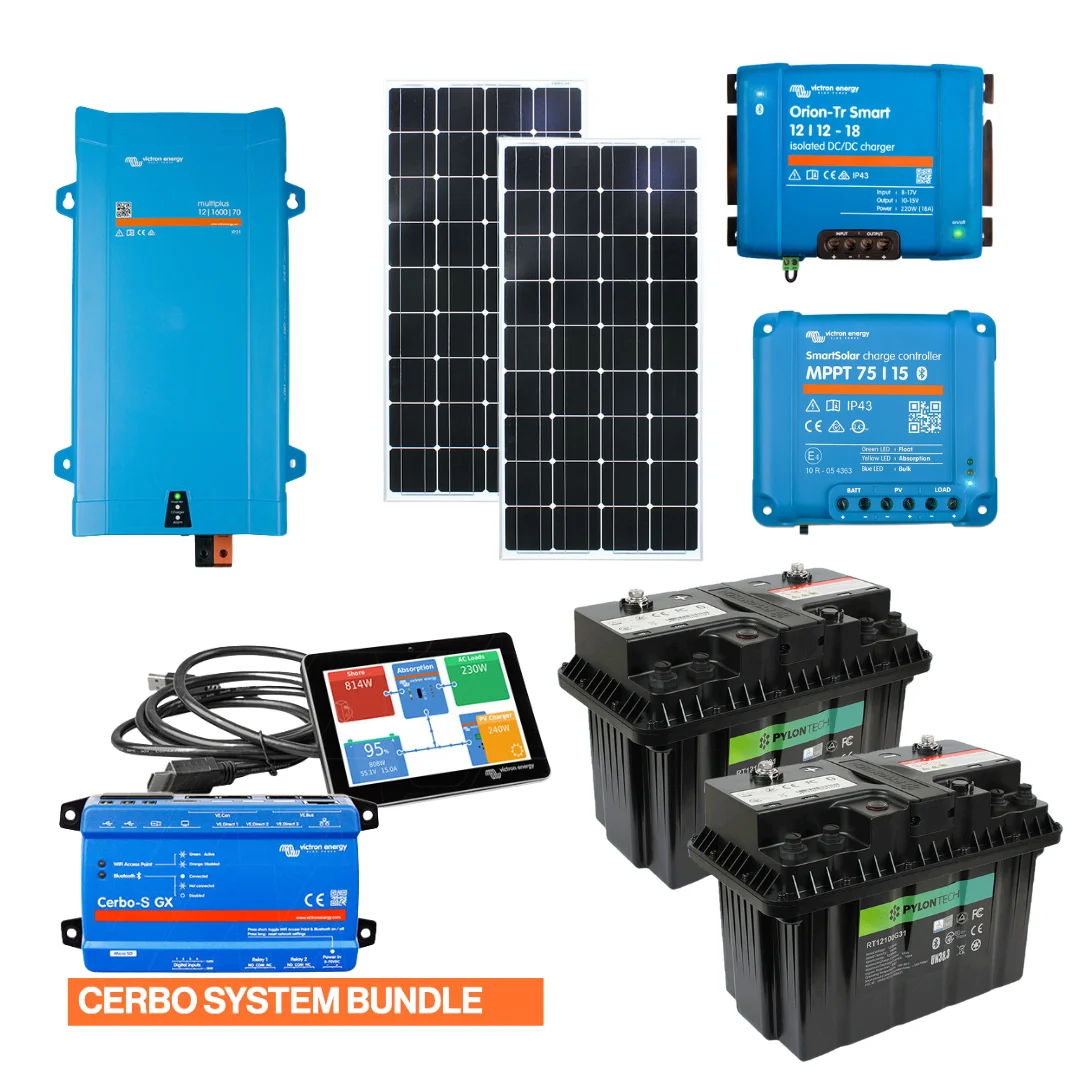

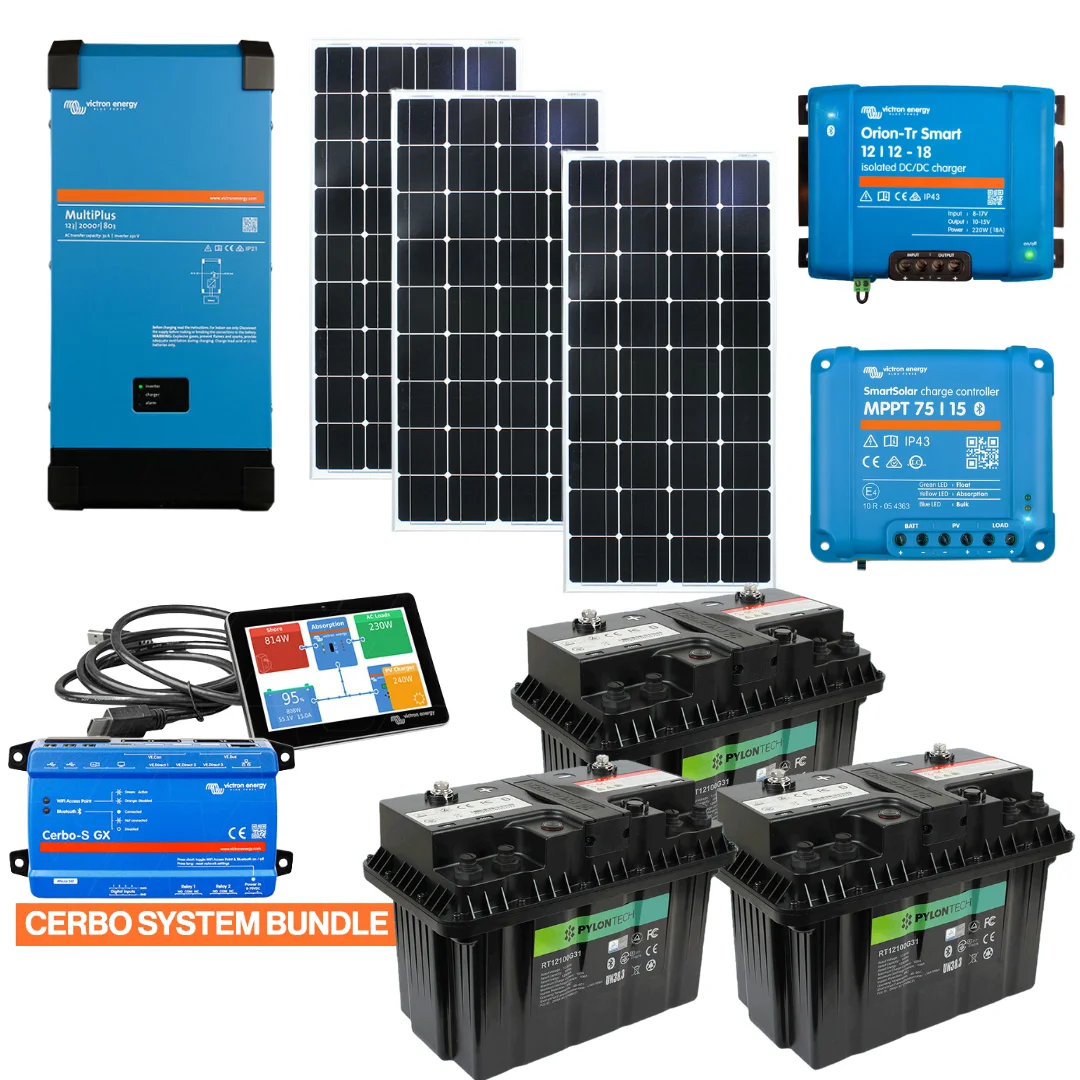

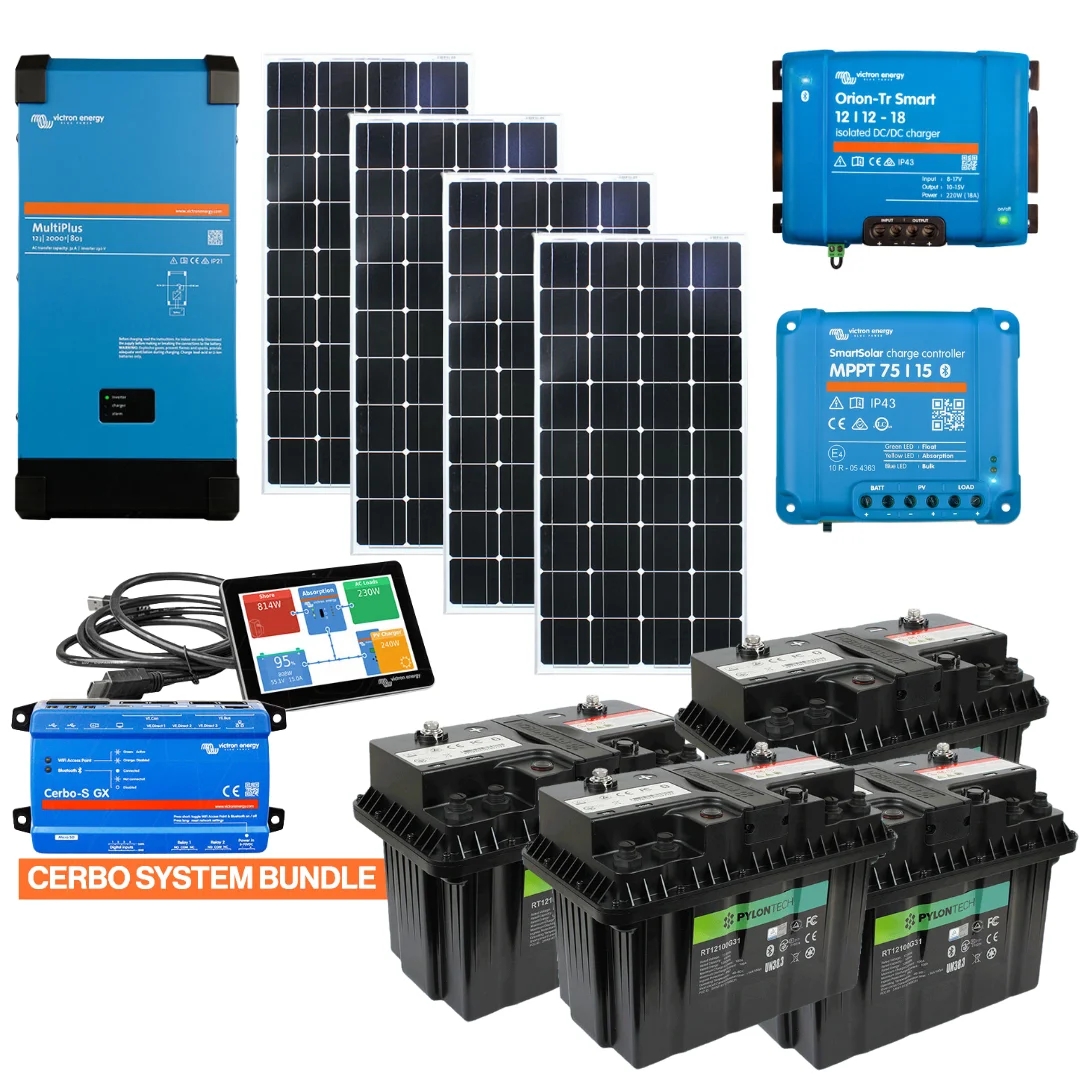

Complete Caravan & 4X4 Kit 300Ah Lithium LiFePO4

1)Victron Energy SmartSolar MPPT 100/30

SmartSolar MPPT 100/30 solar charge controller from Victron Energy with:

• 12V/24V auto select battery voltage
• 15A rated charge current
• 220W @12V or 440W @24V maximum PV power
• Automatic load disconnect
• 98% peak efficiency
• Reverse polarity (fuse) protection, output short circuit protection, over temperature protection

Bluetooth Smart built-in: dongle not needed
The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.

VE.Direct
For a wired data connection to a Color Control panel, PC or other devices

Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life.
The load output is short circuit proof.

Battery Life: intelligent battery management
When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months.
The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.

Programmable battery charge algorithm
See the software section on our website for details

Day/night timing and light dimming option
See the software section on our website for details

Programming, real-time data and history display options
– Modern Apple and Android smartphones, tablets, macbooks and other devices: see the VE.Direct Bluetooth Smart dongle and the MPPT app discovery sheet for screenshots.
– ColorControl panel

2) SPM041751200 VICTRON 12V 175W SOLAR PANEL

BlueSolar Monocrystalline Panels

• Low voltage-temperature coefficient enhances high-temperature operation.
• Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
• 25-Year limited warranty on power output and performance.
• 5-Year limited warranty on materials and workmanship.
• Sealed, waterproof, multi-functional junction box gives high level of safety.
• High performance bypass diodes minimize the power drop caused by shade.
• Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
• A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
• Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
• High power models with pre wired quick-connect system with MC4 (PV-ST01) connectors.

3) ORION-TR SMART 12/12-18A (220W) DC-DC CHARGER

Orion-Tr Smart DC-DC Charger Isolated
The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.

For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.

The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.

Suitable for high temperatures up to 55°C with a full rated output up to 40°C.

Bluetooth Smart enabled
Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to
change settings and to update the charger when new software features become available.

Fully programmable

• Battery charge algorithm (configurable) or fixed output.
• Smart alternator compatibility: engine running detection mechanism.

Adaptive 3-stage charge algorithm: bulk – absorption – float

• For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.
• For lithium batteries absorption time is fixed, default 2 hours.
• Alternatively, a fixed output voltage can be chosen.

Remote on-off
A remote on/off switch or relay contact can be connected to a two-pole connector.
Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.

High temperature protected
The output current will reduce at high ambient temperature.

IP43 protection
When installed with the screw terminals oriented downwards.

Screw terminals
No special tools needed for installation.

4) RT12100G31 LiFePO4 PYLONTECH 12.8V 100Ah 1.28kWh

Advanced IP67 rated 12V 100Ah Lithium Iron Phosphate battery with On/Off button, advanced communications protocols and easy scalability.

The Pylontech RT12100G31 battery has been developed to provide adaptability and scalability to applications from Marine, RV/Caravan, 4×4 and other solar storage systems.

The Intelligent BMS provides the ultimate in safety with temperature protection, over-voltage, over-current and short circuit protection to ensure safe operation, high reliability & zero maintenance to extend service life.

However, it’s the advanced communication protocols built in that is the biggest advantage! Incorporating the RT12100G31 into your power system is also simple when combined with a Victron Energy GX device , allowing monitoring & control from existing battery system monitors or marine glass bridges.

Being an “array aware” or managed battery, The RT12100G31 allows for expansion by allowing the BMS to communicate with each other in a master/slave format. This allows for the battery system to increase maximum continuous discharge @ 1.0C up to 8 batteries (e.g 1S4P will provide a Max. cont. discharge of 400A, with an 800A pulse discharge for 30 seconds.

Scalability:

A 12V System (1S) can be scaled up to 16 in parallel
A 24V system (2S) up to 8 in parallel
A 48V system (4S) up to 4 in parallel
*For systems of 1-8 batteries, the maximum continuous discharge is 1.0C, for system of 9 batteries or more, the maximum continuous discharge is 0.8C

As Lithium batteries provide clear advantages over traditional lead-acid batteries with longer service life, deeper discharge capability, more usable capacities and much lighter weight, the RT12100G31 is a great solution for many applications.

Bluetooth:

Specifications:

Voltage 12.8V
Capacity 100Ah
Wat Hour 1280Ah
Chemistry LiFePO4 (Lithium Iron Phosphate)
Cycle life >6000 cycles (90% DoD) @ 25ºC
Max. continuous discharge current: 100A
Max. Pulse discharge current: (30 sec) 200A
Charge voltage: 14.0V – 14.4V
Max. continuous charge current: 50A
Operating Discharge temperature: -20°C to +60ºC
Operating Charge temperature: -0°C to +60ºC
Storage temperature: -40°C to +60ºC
Short Circuit Protection Yes
Ingress Rating: IP67 Rating
Series Connection Allowed: Up to 4S
Parallel Connection Allowed: Up to 16P @ 12V

Up to 8P @ 24V

Up to 4P @ 48V

Case Structure :Rugged mechanical design
Safety :UN38.3 Approved
Warranty :5 Years
Size :G31 Size

5) VEICMP-12/2000/80-32A VICTRON MULTIPLUS INVERTER & SLA/LIFEPO4 CHARGER 12V 2000VA 80A

Multifunctional, with intelligent power management
The MultiPlus is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology, and a high-speed AC transfer switch in a single compact enclosure. Next to these primary functions, the MultiPlus has several advanced features, as outlined below.

Parallel operation and three phase capability
Up to six Multis can operate in parallel to achieve higher power output.
In addition to parallel connection, three units can be configured for three-phase output.

PowerControl – Dealing with limited generator, shore side or grid power
With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.

PowerAssist – Boosting the capacity of shore or generator power
This feature takes the principle of PowerControl to a further dimension. It allows the MultiPlus to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.

Four stage adaptive charger and dual bank battery charging
The main output provides a powerful charge to the battery system by means of advanced ‘adaptive charge’ software. The software fine-tunes the three-stage automatic process to suit the condition of the battery, and adds a fourth stage for long periods of float charging. The adaptive charge process is described in more detail on the Phoenix Charger datasheet and on our website, under Technical Information. In addition to this, the MultiPlus will charge a second battery using an independent trickle charge output intended for a main engine or generator starter battery.

High start-up power
Needed to start high inrush loads such as power converters for LED lamps, halogen lamps or electric tools.

Search Mode
When Search Mode is ‘on’, the power consumption of the inverter in no-load operation is decreased by approx. 70%. In this mode the Multi, when operating in inverter mode, is switched off in case of no load or very low load, and switches on every two seconds for a short period. If the output current exceeds a set level, the inverter will continue to operate. If not, the inverter will shut down again.

Programmable relay
By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energise in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low).

Remote on / off / charger on
Three pole connector.

On-site system configuring, monitoring and control
After installation, the MultiPlus is ready to go.
Some settings can be changed with DIP switches.
500/800/1200VA models: remote switch / battery charge voltage / inverter frequency /search mode.
1600/2000VA models: battery charge voltage /search mode.
For more settings use VE-Config or the VE.Bus Smart dongle.

Remote configuring and monitoring
Install a Cerbo GX or other GX product to connect to the internet. Operational data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge.
When connected to the internet, systems can be accessed remotely, and settings can be changed.

6) CERBO-S GX + TOUCH 50 COMBO VICTRON SYSTEMS CONT & MONITOR + TOUCH 50 GUI

System monitoring combo package: CERBO-S GX + GX Touch 50

Purchase the CERBO-S GX communication centre together with the GX Touch 50 (5 inch graphical user interface) for a better price than buying them separately.

Cerbo-S GX

This all-new communication-centre allows you to always have perfect control over your system from wherever you are and maximises its performance. Simply connect through our Victron Remote Management (VRM) portal, or access directly via the GX Touch 50 (MFD), or the VictronConnect app thanks to its added Bluetooth capability. The Cerbo-S GX combines all the best of connectivity, redefining smart power solutions in every way.

Watch the new video below that explains all there is to know about installing the new Cerbo-S GX & GX Touch 50.

Perfect monitoring & control

Instantly monitor the battery state of charge, power consumption, power harvest from PV, generator, and mains, or check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop generator(s) or change any setting to optimise the system. Follow up on alerts, perform diagnostic checks and resolve challenges remotely. The Cerbo GX turns any power challenge into an effortless experience.

Maximise your system performance

The Cerbo-S GX maximises the performance of your systems components in real-time and keeps them in perfect tune. With its Dual Core Processor and the addition of an extra CAN-bus port you can now support even bigger systems; closely follow managed (lithium) batteries while the second port can support up to 25 simultaneously connected VE.Can solar chargers. The new NMEA 2000-out support has the GX easily integrated into any boats network. 3 VE.Direct ports, 3 USB ports, 4 digital inputs and 2 relays allow you to expand control to a new level. Maximising systems performance was never this easy.

Expand your view

The GX Touch 50 display allows you to have an instant overview of your system and adjust settings in the blink of an eye. Its super slim 5 inch waterproof design, top-mountable setup and its simple installation bring a lot of flexibility when creating a crisp and clean dashboard.

7) VE.DIRECT CABLE 1.8M VICTRON Connection from BMV-70x & MPPT’s to Colour Control

VE.Direct Cable to connect BMV-70x and low power MPPTs to the Color Control GX

1800mm Length – Straight End

8) RJ45 UTP CABLE 1.8M VICTRON NETWORK CABLES FOR VE.CAN VE.BUS VE.NET & VE9BITRS487

Network cables for VE.Can, VE.Bus, VE.Net and VE9bitRS485

Allows to connect Phoenix Inverter Control or Interface MK3-USB.

1.8 metre length

9) VE.CAN TO ALTWM12 5 METRE VE.CAN TO RT12100G31 CABLE (CA187B)

5m communications cable required to link a RT12100G31 battery to a Victron Venus device.
